Network problems are more than just frustrating—they’re productivity killers that can cost your business thousands of dollars in lost time and opportunities. Whether you’re running a growing business or managing your home office, a properly set up and optimized network isn’t just a convenience; it’s essential infrastructure.

In this comprehensive guide, we’ll walk you through everything you need to know about creating a network that’s fast, reliable, and secure. From selecting the right equipment to implementing advanced security measures and troubleshooting common issues, we’ve got you covered with actionable advice that works for businesses of all sizes.

While this guide will give you the knowledge to improve your network setup significantly, remember that professional network services can save you time, prevent costly mistakes, and provide peace of mind.

Let’s dive in and build a network that powers your success rather than holding it back.

Understanding the Basics of Network Setup

Before jumping into the technical details, let’s clarify what a network actually is and how it functions. At its core, a network is a collection of connected devices that can communicate with each other and share resources. Think of it as the digital highway that allows information to flow between your computers, servers, printers, and the internet.

Key Components of a Network

Every functional network consists of several critical components working together:

• Modem: This device connects your network to your Internet Service Provider (ISP), essentially serving as the gateway between your local network and the internet. It converts the signal from your ISP into one your network can use.
• Router: The traffic director of your network, a router connects to your modem and directs data between your local network devices and the internet. It assigns local IP addresses to your devices and manages the flow of data packets.
• Switch: While smaller networks might not need one, a switch is essential for business environments. It connects multiple devices on the same network, allowing them to communicate directly with each other without going through the router first.
• Access Points: These extend your wireless network coverage, allowing devices to connect to your network from more locations. They’re particularly important in larger spaces or buildings with concrete walls or metal structures that can block wireless signals.
• Firewall: This critical security component monitors and controls incoming and outgoing network traffic based on predetermined security rules, acting as a barrier between your trusted internal network and the untrusted external network (the internet).
• Ethernet Cables: These physical cables connect your devices to each other and to your router/switch for a wired connection, which typically offers faster speeds and more reliable connections than wireless.

Wired vs. Wireless Networking

Both wired and wireless connections have their place in a well-designed network:

Wired Networks (Ethernet):

• Offer faster speeds and more stable connections
• Provide better security as the physical connection is required
• Eliminate wireless interference issues
• Ideal for stationary devices that need maximum performance (servers, desktop computers, network storage)

Wireless Networks (Wi-Fi):

• Provide mobility and flexibility
• Eliminate cable clutter
• Support devices that lack Ethernet ports (smartphones, tablets)
• Perfect for areas where running cables is impractical

Most modern networks use a hybrid approach, with critical infrastructure and high-performance needs served by wired connections, while general-purpose and mobile devices connect wirelessly.

This balanced approach gives you the best of both worlds: the speed and reliability of wired connections where it matters most, and the convenience of wireless everywhere else.

Planning Your Network Infrastructure

Proper planning is the foundation of a successful network implementation. Taking time to assess your needs and environment before purchasing equipment will save you from costly mistakes and performance bottlenecks down the road.

Assessment of Business Needs

Start by answering these critical questions:

• How many users and devices will connect to your network? A small office with 5-10 employees has very different needs than one with 50+ team members.
• What types of activities will your network support? Basic internet browsing and email require far less bandwidth than video conferencing, cloud-based applications, or transferring large files.
• What are your peak usage times? Understanding when network demand is highest helps you plan for adequate capacity.
• What are your speed requirements? For most small businesses, a symmetrical connection with at least 100 Mbps download and upload speeds is a good starting point.
• What are your reliability requirements? If internet downtime means substantial revenue loss, you’ll need to consider redundant connections.
• Will users be required to work remotely? If users are required to work remotely, then this raises the question if they need access to office resources, such as mapped drives from a file server, or printers. This will determine the requirement of installing a firewall with VPN capabilities.
• Will the business scale up? Scaling up needs to take in consideration adding maybe more AP’s down the road, or adding other specific hardware as required. This hardware needs to be taken into consideration in terms of compatibility and possibility of adoption into the existing ecosystem.

Budget Considerations

Network equipment varies widely in price and capabilities. While it’s tempting to choose the least expensive options, remember that your network is business-critical infrastructure. Here are some guidelines:

• Invest in business-grade equipment for your core network (router, switch, main access points)
• Plan for a 3-5 year lifecycle for most network equipment
• Allocate 15-25% of your budget for professional installation if you don’t have in-house expertise
• Include ongoing maintenance costs in your calculations
• Factor in scalability so you don’t need to replace everything as you grow

Physical Space Evaluation

Your physical environment significantly impacts network performance:

• Map your office layout, noting the locations of all devices that will need connectivity
• Identify potential sources of interference such as concrete walls, metal structures, and electronic equipment
• Locate your server room or network closet in a secure, climate-controlled area
• Plan cable paths that avoid electrical interference and physical hazards
• Check for adequate power outlets and consider UPS (Uninterruptible Power Supply) for critical equipment

Future Growth Planning

The network you install today should support your business for several years:

• Overestimate your needs by 30-50% to accommodate growth
• Choose equipment that allows for expansion through additional ports or stacking capability
• Consider structured cabling with capacity beyond immediate needs
• Document everything thoroughly to make future upgrades easier

Network Topology Options

The way you arrange your network devices matters:

• Star Topology: All devices connect to a central switch or router (most common for small businesses)
• Mesh Topology: Devices connect to multiple other devices, providing redundant paths
• Tree Topology: Hierarchical arrangement with branches stemming from a central backbone
• Hybrid Topology: Combination of different topologies to meet specific needs

For most small to medium businesses, a star or hybrid topology centered around a quality business-grade router or a small rack of equipment offers the best balance of performance, simplicity, and reliability.

Choosing the Right Networking Equipment

Selecting appropriate hardware is critical to your network’s success. The right equipment will provide reliable performance now while accommodating future growth.

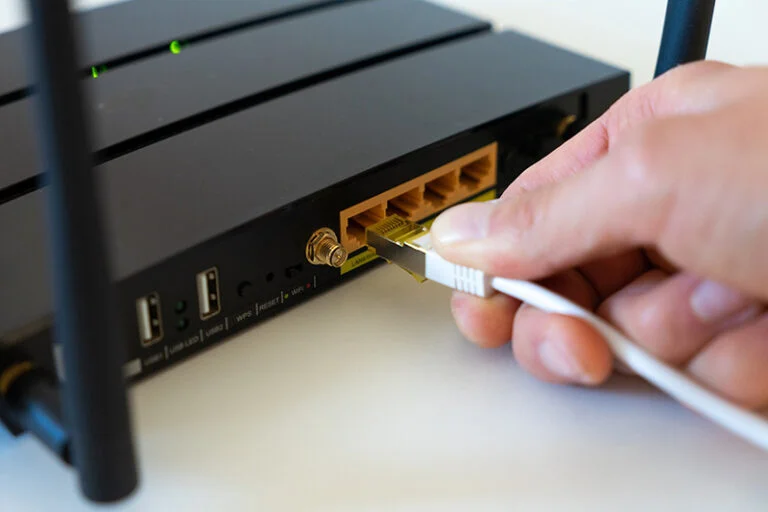

Selecting the Best Router

Your router is the heart of your network, so choosing wisely is essential:

• Speed rating: Look for at least AC1900 for small offices, or better yet, WiFi 6 (802.11ax) compatibility for future-proofing.
• Processor and RAM: Business-grade routers should have at least a dual-core processor and 512MB RAM for smooth operation.
• Security features: Advanced features like stateful packet inspection, VPN support, and regular security updates are crucial.
• Management interface: A user-friendly dashboard makes configuration and troubleshooting much easier.
• Warranty and support: Business-grade routers typically offer longer warranties and better technical support.

For businesses, consider routers from Cisco, Ubiquiti, or SonicWall rather than consumer-grade options. While they cost more upfront, they offer better security, reliability, and management capabilities.

Understanding Bandwidth Needs

Bandwidth requirements vary greatly depending on your business activities:

• Basic office work (email, web browsing, occasional file sharing): 5-10 Mbps per user
• Cloud-based applications: 10-15 Mbps per user
• Video conferencing: 5-10 Mbps per simultaneous call
• File sharing/backup: 20+ Mbps if done regularly
• VoIP phone systems: 0.1 Mbps per line, but with high-priority needs

Multiply these numbers by your user count and add a 30-50% buffer for optimal performance. Remember that upload speed is just as important as download speed for businesses using cloud services or hosting video calls.

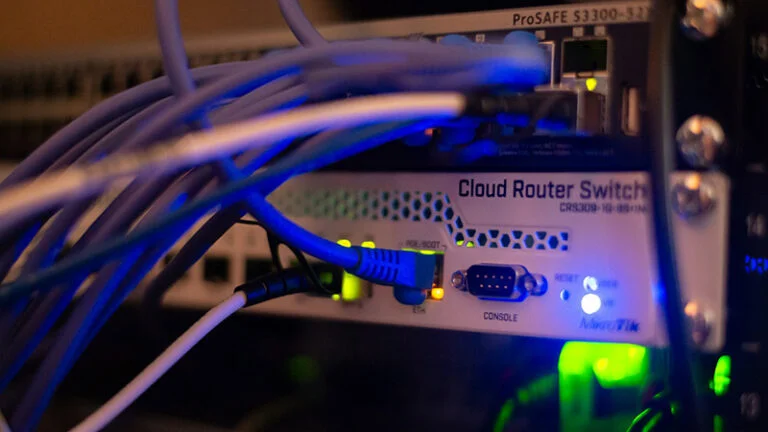

Network Switches for Expanding Wired Connections

Switches connect multiple devices on your local network:

• Port count: Choose a switch with more ports than you currently need (16, 24, or 48 port options are common).
• Speed: Gigabit (1000 Mbps) is now standard, with 10 Gigabit becoming more affordable for core infrastructure.
• PoE (Power over Ethernet): This allows devices like IP phones, access points, and security cameras to receive power through the network cable, simplifying installation.
• Managed vs. unmanaged: Managed switches cost more but provide valuable features like VLANs, Quality of Service, and monitoring capabilities.

For growing businesses, managed PoE switches provide the most flexibility and control over your network.

Wi-Fi Extenders and Mesh Networks

For complete wireless coverage, you have several options:

• Wi-Fi extenders: These repeat your existing signal to extend range but may reduce speed.
• Mesh networks: These systems use multiple access points that work together seamlessly to provide whole-building coverage without speed degradation.
• Access points (APs): Professional-grade APs connect to your wired network and create new Wi-Fi coverage zones.

For most business environments, enterprise access points or mesh systems offer better performance than simple extenders. They provide more consistent coverage, better handoff between points, and centralized management.

Firewall and VPN Options

Security should never be an afterthought:

• Hardware firewalls: Dedicated devices that provide robust protection at the network perimeter.
• Next-generation firewalls (NGFW): Advanced protection that includes intrusion prevention, application awareness, and threat intelligence.
• VPN support: Essential for secure remote work, allowing employees to connect to your network securely from anywhere.
• Subscription services: Many business firewalls include subscription-based security services that provide regularly updated threat protection.

Even small businesses should invest in a business-grade firewall solution from vendors like Fortinet, SonicWall, or Cisco. The protection they provide far outweighs their cost, especially considering the average cost of a data breach.

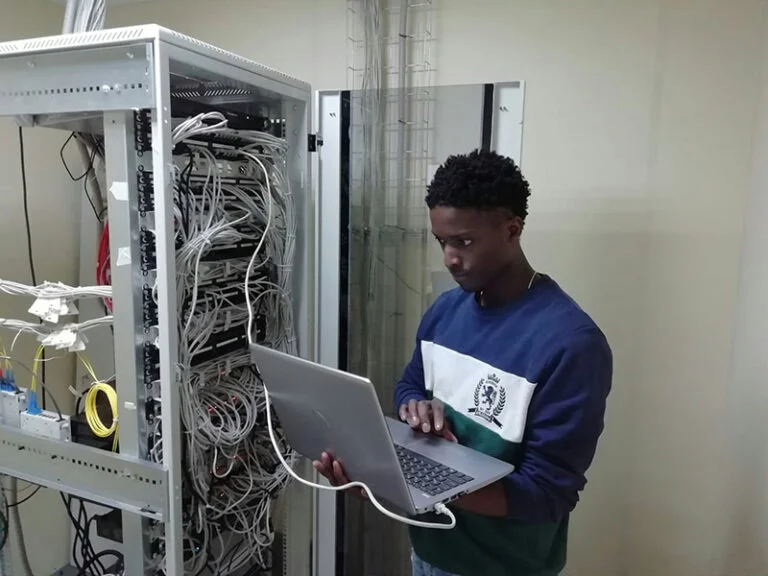

Setting Up Your Network: Step-by-Step Guide

With planning complete and equipment in hand, it’s time to set up your network. Following these steps will help ensure a smooth implementation.

Physical Setup Instructions

1. Prepare your space: Ensure your server room or network closet is clean, well-ventilated, and has adequate power outlets.
2. Install equipment racks if you’re using rack-mounted equipment.
3. Install your core networking equipment: Mount your router, switches, and any other core equipment.
4. Connect to your internet service: Link your primary router or firewall to the modem provided by your ISP.
5. Connect network devices: Use appropriate length Ethernet cables to connect your switches to your router and to each other if needed.
6. Label everything: Clearly label all cables and ports for future maintenance.
7. Install wireless access points: Mount these in optimal locations based on your site survey. A heatmap would be beneficial to eliminate guesswork in terms of AP location.
8. Connect power: Ideally through an Uninterruptible Power Supply (UPS) for critical equipment.

Network Configuration Steps

Once the physical setup is complete, it’s time to configure your network:

1. Update firmware: Ensure all devices are running the latest firmware before configuration.
2. Configure your router/firewall:
   • Set up WAN connection details provided by your ISP
   • Change default admin credentials
   • Configure basic security settings
3. Set up your local network:
   • Configure your primary LAN
   • Set up DHCP server settings (IP address range, lease time)
   • Configure DNS settings
4. Configure switches:
   • Set up management IP addresses
   • Configure VLANs if needed
   • Enable spanning tree protocol to prevent network loops
   • Configure PoE settings for powered devices

IP Addressing and Subnetting

Proper IP addressing makes your network more organized and secure:

• Use private IP ranges: Typically 192.168.x.x for small networks or 10.x.x.x for larger ones
• Implement subnetting: Divide your network into logical segments for better organization
• Reserve IP ranges: Allocate specific ranges for different device types (printers, servers, workstations)
• Assign static IPs to infrastructure devices like printers, servers, and network equipment

Static vs. Dynamic IP Addressing

• Static IPs are manually assigned and never change. Use these for:
  • Servers and network equipment
  • Printers and scanners
  • Any device that others need to connect to regularly
• Dynamic IPs are automatically assigned by your DHCP server. Use these for:
  • Employee workstations
  • Mobile devices
  • Guest devices

VLAN Setup

Virtual Local Area Networks (VLANs) logically separate your network for better security and performance:

• Employee network: For regular staff computers and devices
• Guest network: For visitors to your office
• Voice network: For VoIP phones (with QoS prioritization)
• Management network: For administrative access to network equipment
• IoT network: For internet-connected devices that don’t need access to your main network

Each VLAN functions as its own separate network with specific access rules between them, enhancing both security and performance.

Quality of Service (QoS) Configuration

QoS settings ensure critical applications get priority:

1. Identify critical applications: Voice, video conferencing, and critical business applications
2. Assign priority levels: Give highest priority to real-time applications like voice
3. Set bandwidth limits: Prevent non-essential services from consuming all available bandwidth
4. Configure and test: Implement your QoS policy and test with real-world usage

WiFi Configuration

Set up your wireless network for optimal performance and security:

1. Choose appropriate channel settings: Use channels with minimal interference
2. Set up separate SSIDs for different networks (main, guest, IoT)
3. Enable WPA3 security where supported, or WPA2-Enterprise for business environments
4. Implement MAC address filtering for an additional layer of access control
5. Configure band steering to guide devices to appropriate frequency bands
6. Set appropriate signal strength to limit coverage beyond your physical premises

Testing Procedures

Before considering your network complete, thorough testing is essential:

1. Connectivity testing: Verify all wired and wireless connections
2. Speed testing: Check actual throughput against expected performance
3. Application testing: Run your critical business applications to verify performance
4. Security testing: Verify firewall rules and access controls
5. Failover testing: If you have redundant connections, test failover scenarios
6. Load testing: Simulate peak usage to identify potential bottlenecks

Documentation Importance

Thorough documentation saves countless hours during troubleshooting and upgrades:

• Network diagram: Visual representation of your entire network
• IP address inventory: Record of all static IP assignments
• Configuration backups: Secure copies of all device configurations
• Credentials: Securely stored passwords and access information
• Vendor contact information: Support numbers and account details
• Change log: Record of all modifications made to the network

This documentation should be kept secure but accessible to authorized personnel, with regular updates as changes are made.

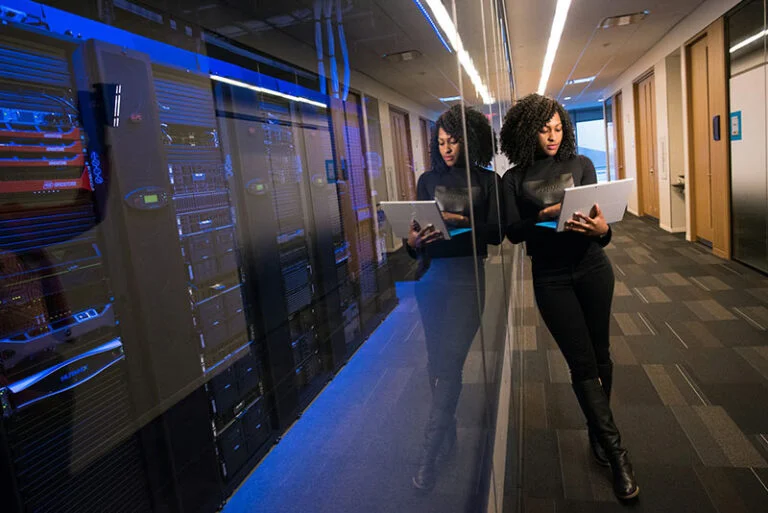

Network Optimization Techniques

Once your network is up and running, optimization can help you get the most from your investment.

Improving Wi-Fi Speed and Coverage

Wi-Fi performance depends on many factors:

• Router placement: Position your router or access points centrally, away from walls and metal objects
• Antenna positioning: For adjustable antennas, experiment with different orientations
• Channel selection: Use WiFi analyzer tools to find the least congested channels
• Frequency bands: Use 5GHz for higher speeds when devices are in close range, and 2.4GHz for better distance coverage
• Reduce interference: Keep access points away from microwave ovens, cordless phones, and Bluetooth devices
• Update firmware: Regular updates often include performance improvements

For larger spaces, a professional site survey can identify optimal access point placement and configuration settings.

Reducing Network Congestion

Network congestion occurs when demand exceeds capacity:

• Monitor bandwidth usage: Identify bandwidth-hungry applications and users
• Implement QoS: Prioritize critical applications during peak usage
• Schedule large transfers: Perform backups and updates during off-hours
• Upgrade bottlenecks: Increase capacity at congestion points
• Use caching: Implement local caching for frequently accessed content
• Control cloud synchronization: Configure sync applications to operate during off-hours

Measuring and Testing Network Performance

Regular performance testing helps identify issues before they impact users:

• Speed tests: Use tools like Speedtest.net to check internet connection speeds
• Ping tests: Measure latency to important destinations
• Jitter testing: Verify stability of real-time applications
• Throughput testing: Measure actual data transfer rates on your local network
• Wireless coverage mapping: Identify dead zones and interference

Network Monitoring Tools

Proactive monitoring prevents downtime:

• SNMP monitoring: Track device health and performance
• Traffic analysis: Identify unusual patterns that might indicate problems
• Alert systems: Get notified about issues before users report them
• Performance trending: Track changes over time to identify gradual degradation
• Bandwidth monitoring: Watch for unexpected spikes in usage

Best Practices for Network Security

Security isn’t just about preventing breaches; it’s about building a resilient environment that protects your business assets.

Why Network Security Matters

The stakes for network security have never been higher:

• Data breaches cost businesses an average of $4.45 million per incident (IBM Cost of a Data Breach Report)
• Ransomware attacks occur every 11 seconds, with average downtime of 21 days
• Small businesses are targeted in 43% of cyberattacks, but have fewer resources to defend themselves
• Regulatory compliance requirements like GDPR, PIPEDA, and PCI DSS impose significant penalties for security failures

Must-Do Security Practices

Implement these fundamental security measures:

• Change default credentials: Immediately change the default usernames and passwords on all network equipment
• Implement strong password policies: Require complex passwords that are changed regularly
• Enable network encryption: Use WPA3 for wireless networks and encrypt sensitive data in transit
• Keep firmware updated: Regularly check for and apply security updates
• Enable firewalls: Configure both network and host-based firewalls
• Implement intrusion detection/prevention: Monitor for and block suspicious activities
• Segment your network: Separate guest, IoT, and business networks
• Regular security audits: Conduct periodic reviews of your security posture

Multi-Factor Authentication (MFA)

MFA dramatically improves security by requiring something you know (password) plus something you have (mobile device or security key):

• Implement MFA for all remote access to your network
• Require MFA for administrative access to network equipment
• Use MFA for critical business applications and services
• Consider biometric authentication for highly sensitive systems

Virtual Private Networks (VPNs)

VPNs create secure tunnels for remote workers:

• Site-to-site VPNs connect multiple office locations securely
• SSL VPNs allow individual users to connect securely
• Always-on VPNs enforce security policies for company devices
• Split tunneling can optimize performance for trusted applications

Network Segmentation

Divide your network into security zones:

• Create separate VLANs for different security levels
• Implement access control lists (ACLs) between segments
• Isolate guest traffic from business systems
• Quarantine suspect devices automatically when threats are detected

Employee Security Training

Technology alone isn’t enough; people are a critical component of security:

• Regular security awareness training for all employees
• Phishing simulation exercises to test awareness
• Clear security policies that are easy to understand and follow
• Incident reporting procedures that encourage employees to report suspicious activities

As our in-depth article on user error in IT operations explains, even the most secure technical systems remain vulnerable if users aren’t properly trained and supported.

For more detailed information on protecting your business, see our guide on protecting your business from cybersecurity threats.

Common Network Problems and How to Fix Them

Even the best-designed networks encounter problems. Knowing how to troubleshoot efficiently saves time and frustration.

Slow Internet Speed Troubleshooting

When everything seems to be crawling:

1. Run a speed test: Establish if the problem is with your internet connection or internal network. This speed test should be performed from your router to separate WiFi issues from ISP issues.
2. Check for bandwidth hogs: Use monitoring tools to identify users or applications consuming excessive bandwidth
3. Restart networking equipment: Sometimes a simple reboot clears temporary issues
4. Check for interference: Wireless performance can be affected by nearby electronic devices
5. Verify QoS settings: Ensure critical applications are properly prioritized
6. Contact your ISP: If speeds are consistently below what you’re paying for, escalate to your provider

Wi-Fi Connectivity Issues

When wireless devices can’t connect or frequently disconnect:

1. Check signal strength: Use WiFi analyzer tools to verify coverage where problems occur
2. Look for interference: Other wireless networks, microwave ovens, and Bluetooth devices can cause problems
3. Check channel width: A higher width can provide higher speeds but shorter broadcast range, while a lower width provides slightly lower speeds, while range is improved
4. Verify client compatibility: Older devices may not support newer wireless standards
5. Update drivers and firmware: Both access points and client devices need current software
6. Check for overloaded access points: Too many devices on a single access point can cause issues
7. Examine band steering settings: Ensure devices are connecting to appropriate frequency bands

Network Security Concerns

If you suspect security issues:

1. Scan for unauthorized devices: Check for unknown devices on your network
2. Review access logs: Look for unusual login attempts or access patterns
3. Verify firewall rules: Ensure your security policies are being enforced correctly
4. Run vulnerability scans: Identify and patch potential security holes
5. Check for unusual traffic patterns: Large amounts of outbound traffic could indicate compromise
6. Validate wireless security: Ensure your wireless networks are using strong encryption

When to Call Professional Help

Some situations warrant expert assistance:

• Persistent performance issues that basic troubleshooting doesn’t resolve
• Suspected security breaches or unusual network behaviour
• Complex configuration changes that could impact business operations
• Hardware failures requiring specialized knowledge to repair
• Major network expansions or redesigns

Professional support can diagnose problems more quickly and implement solutions that address root causes rather than symptoms. Learn more about how remote monitoring and management saves time and money.

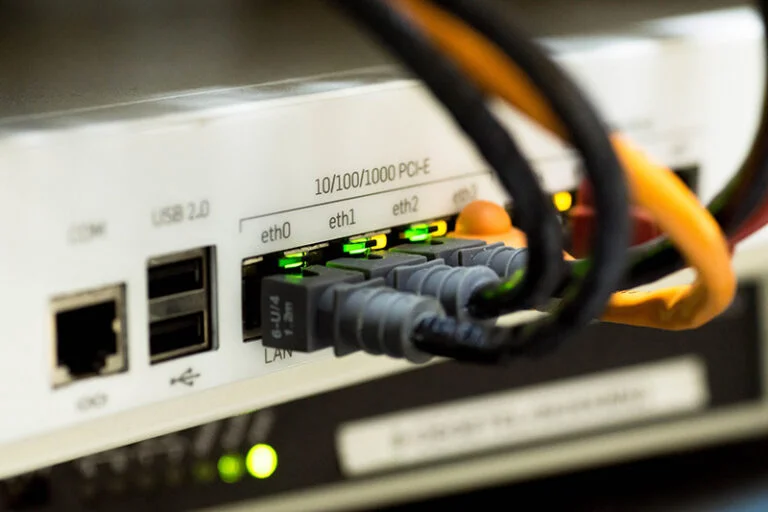

Professional Network Services

While this guide empowers you to improve your network, there are compelling reasons to consider professional assistance.

Benefits of Professional Setup

Expert implementation offers significant advantages:

• Proven designs based on experience across multiple environments
• Proper documentation from the start, making future maintenance easier
• Optimized configurations that balance performance, security, and reliability
• Reduced downtime risk through thorough testing before deployment
• Knowledge transfer to your team during the implementation process

When to Consider Managed Services

Ongoing professional management makes sense when:

• You lack in-house IT expertise dedicated to network management
• Your business depends heavily on network reliability
• Compliance requirements demand rigorous security and documentation
• You want predictable IT costs rather than unexpected emergency expenses
• Your team should focus on core business activities rather than infrastructure maintenance

Professional IT support services provide 24/7 monitoring, regular maintenance, and rapid response when issues arise.

Cost-Benefit Analysis

When evaluating professional services:

• Compare the cost of planned professional support versus emergency assistance
• Calculate the value of avoided downtime based on your business operations
• Consider productivity improvements from a properly optimized network
• Factor in risk reduction from improved security and reliability
• Evaluate opportunity costs of using internal resources for network management

Many businesses find that professional services actually reduce total costs while improving outcomes.

What to Look for in a Service Provider

Choose partners carefully:

• Verified expertise with your specific technologies
• Structured approach to design, implementation, and documentation
• Clear service level agreements defining response times and responsibilities
• Proactive monitoring and maintenance rather than just break-fix support
• Security focus including regular assessments and updates
• Client references from similar businesses

For more detailed information see our Beginner’s Guide to IT Support Services.

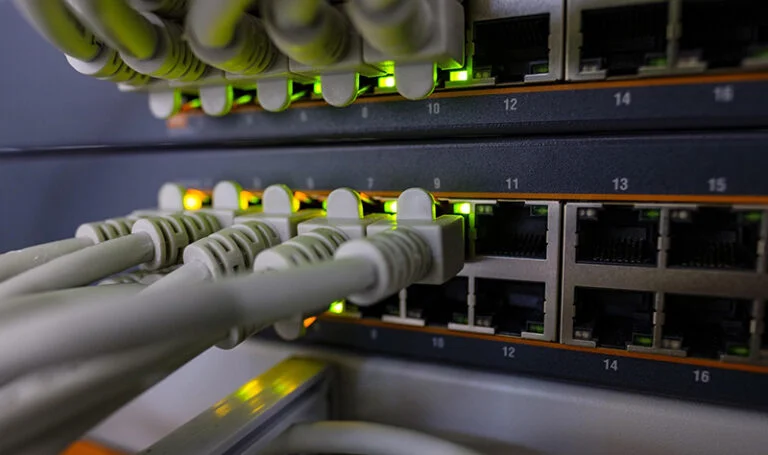

Maintenance and Regular Updates

Network maintenance isn’t a one-time event but an ongoing process that preserves performance and security.

Maintenance Schedule Creation

Develop a regular maintenance calendar:

• Daily tasks: Log review, backup verification
• Weekly tasks: Performance checks, security scans
• Monthly tasks: Firmware updates, configuration backups
• Quarterly tasks: Comprehensive security audits, performance optimization
• Annual tasks: Full network review, capacity planning

Important Regular Checks

Key maintenance activities include:

• Security log review: Look for unauthorized access attempts
• Performance monitoring: Identify trends before they become problems
• Configuration validation: Ensure settings remain as intended
• Physical inspection: Check for cable damage, overheating, etc.
• User access review: Verify that access rights remain appropriate

Update Management

Keep your network current:

• Track firmware releases for all network equipment
• Test updates in a controlled environment when possible
• Schedule update windows to minimize disruption
• Maintain update documentation tracking what’s been applied
• Follow a rollback plan in case updates cause problems

Backup Strategies

Protect your network configurations:

• Regularly backup all device configurations
• Store backups securely in multiple locations
• Test restoration procedures periodically
• Document backup processes so anyone can follow them
• Include configurations in your overall business continuity plan

Disaster Recovery Planning

Prepare for the unexpected:

• Document recovery procedures for various failure scenarios
• Identify critical network components that need the fastest recovery
• Maintain spare equipment for critical infrastructure
• Test recovery plans through tabletop exercises or simulations
• Train multiple team members on recovery procedures

Key Takeaways

Setting up and maintaining an optimized network requires careful planning, appropriate equipment, and ongoing attention. The most successful networks are those that balance performance, security, and reliability while accommodating future growth.

Remember these key principles:

• Start with thorough planning based on your specific business needs
• Invest in quality equipment that will support your operations reliably
• Implement comprehensive security from the beginning
• Document everything for easier troubleshooting and maintenance
• Monitor performance to identify issues before they impact users
• Maintain regular updates to preserve security and performance
• Consider professional assistance for complex implementations and ongoing support

A well-designed network isn’t just infrastructure—it’s a strategic asset that enables your business to operate efficiently, securely, and reliably.

Ready for Expert Network Support?

While this guide provides a solid foundation for network setup and optimization, every business has unique needs. If you’re in Calgary and looking for professional assistance with your network, EezIT is here to help.

Our team specializes in:

• Professional network installation tailored to your business needs
• Comprehensive IT support services to keep your technology running smoothly
• Security assessments and implementation to protect your valuable data
• Proactive monitoring and maintenance to prevent problems before they occur

Book a consultation today to discuss how we can help optimize your network for maximum performance, security, and reliability. Or contact us with any questions about your specific network challenges.

Don’t let network problems hold your business back—partner with EezIT for technology that works as hard as you do
